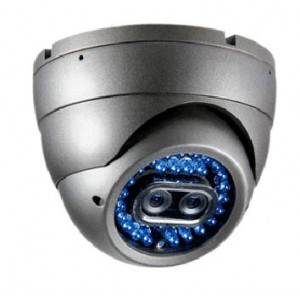

15m IR Vandalproof Fixed Dome Camera

15m IR Vandalproof Fixed Dome Camera
Specifications

- 3.6 / 6 / 8mm fixed lens
- 10 - 15m IR range
- 0.1lux (IR off) / 0Lux (IR off)
- IR66, anti-flare double glass
- 12VDC



More details

10 quantities
-RM10.00
Quick Details
Brand Name: Honeywell Black Vista CCTV Model Number: VDC-350PI-V / VDC-350NI-V Type: Analog Camera
Style: Dome Camera Sensor: CCD Technology: Infrared
Special Features: Vandal-proof Horizontal Resolution: Color 540 TV lines; B/W ... IR range: 10 - 15m
IR LED: 850nm Min Illumination: 0 Lux (IR on) Certification: CE, C-tick
Specifications

- 3.6 / 6 / 8mm fixed lens
- 10 - 15m IR range
- 0.1lux (IR off) / 0Lux (IR off)
- IR66, anti-flare double glass
- 12VDC

Honeywell Vista series VDC-350PI-V Vandal-Proof IR Fixed Dome camera is designed for commercial and residential surveillance, and is ideal for indoor or outdoor applications. It features 540TVL resolution, 15m IR visible range, anti-flare double glass and intelligent IR to provide high quality images. With IR illumination, VDC-350PI-V is ideal for surveillance in dim or even completely dark environments.



The VDC-350PI-V offers you a reliable surveillance tool. Its rugged metal design is vandal-resistance, and its IP66 housing provides maximum protection against dust, water and dirt. Installation is quick and easy. The VDC-350PI-V comes completely assembled and ready-to-use to maximize installation flexibility.



This Vista camera is ideal for entry-level to medium-scale applications in residential areas, commercial buildings, retail
stores, offices, warehouses, shopping malls and so on.



Specifications



Image Sensor 1/3” SONY Super HAD CCD
Signal System VDC-350PI-V: PAL
VDC-350NI-V: NTSC
Effective Pixels VDC-350PI-V: 752(H) x 582(V)
VDC-350NI-V: 768(H) x 494(V)
Horizontal Resolution Color: 540 TV lines; B/W: 600 TV lines
Min Illumination 0.1 Lux (IR LED OFF) / 0 Lux (IR LED ON)
S/N Ratio More than 50dB
AES VDC-350PI-V: 1/50 – 1/100,000 sec
VDC-350NI-V: 1/60 – 1/100,000 sec
White Balance Auto
AGC Auto
BLC Auto
Gamma Correction 0.45
Sync Mode Internal
Lens Fixed Lens f=3.6 mm / 6mm / 8mm selectable
IR LED 850 nm
IR Beam Distance 10 – 15m
IR LED Control ON: 1 – 3 Lux; OFF: 5 – 6 Lux
Video Output 1.0 Vp-p, 75 Ohm
Input Voltage 12VDC
Current Consumption 150 mA (IR LED OFF) + 200 mA (IR LED ON)
Operation Temperature -10°C ~ 50°C under 90%RH (non-condensing)
Rating IP66
Dimension O 94 x 80 mm
Weight 400g
Certificate CE & C-Tick



Ordering



3.6mm fixed lens

VDC-350PI-V (PAL) Vandal Proof IR Fixed Dome, 540 TVL, 0.1 Lux (IR LED OFF)/ 0 Lux (IR LED ON), Day/Night, 12 VDC, 3.6 mm , IR Beam Distance: 10-15m, PAL/NTSC
VDC-350NI-V (NTSC)



6mm fixed lens

VDC-350PI-V60 (PAL) Vandal Proof IR Fixed Dome, 540 TVL, 0.1 Lux (IR LED OFF) / 0 Lux (IR LED ON), Day/Night, 12 VDC, 6 mm, IR Beam Distance: 10-15m, PAL/NTSC
VDC-350NI-V60 (NTSC)



8mm fixed lens

VDC-350PI-V80 (PAL) Vandal Proof IR Fixed Dome, 540 TVL, 0.1 Lux (IR LED OFF) / 0 Lux (IR LED ON), Day/Night, 12 VDC, 8 mm, IR Beam Distance: 10-15m, PAL/NTSC
VDC-350NI-V80 (NTSC)



*Note: Honeywell reserves the right, without notification, to make changes in product design and/or specifications.

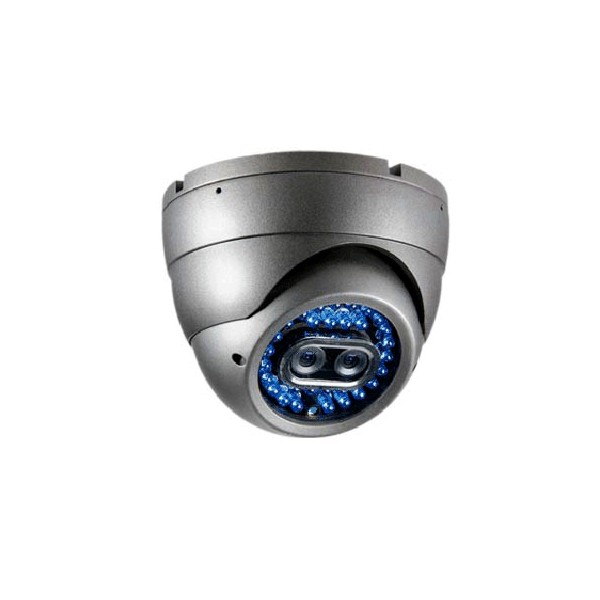

 15m IR Vandalproof Fixed Dome Camera

(Unit: mm)
